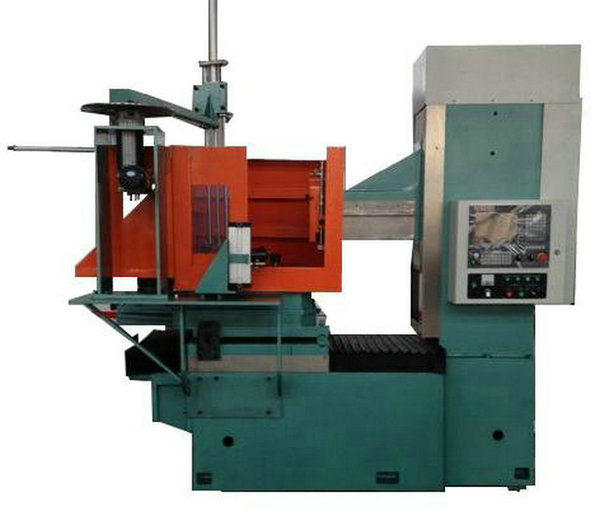

list
|
content
|
unit
|
numerical value
|
|
Number of axes
|
ruling spindle
|
|
X\Z\B
|
|
couple axle
|
|
X\B
|
|
Swing arm shaft
|
|
|
|
Working stroke
|
The workbench mobile [X axes]
|
mm
|
200
|
|
Speed of the workbench [X axes]
|
m/min
|
6
|
|
Wheelhead movement [Z axes]
|
mm
|
200
|
|
Wheelhead quick lifting [Z axes]
|
mm
|
200
|
|
Swing arm Angle
|
°
|
270
|
|
Lifting cylinder stroke
|
mm
|
800
|
|
Workbench
|
Countertops form
|
|
magnetic chuck rotary table
|
|
Countertops size
|
mm
|
Φ500
|
|
maximum load
|
KG
|
50
|
|
Resolution ratio
|
X spindle
|
mm
|
0.001
|
|
Z spindle
|
mm
|
0.001
|
|
|
|
|
|
Spindle
|
conical degree
|
|
ISO 1：5
|
|
range of spindle speed
|
rpm
|
3000
|
|
radial pulsation on internal cone surface
|
rpm
|
0.003
|
|
grinding wheel
|
mm
|
CBN 350*30*203
|
|
Move
|
X\Z spindle quick travel
|
m/min
|
6\6
|
|
B spindle Workbench turning speed
|
rpm
|
10-120
|
|
X\Z spindle Cutting feed
|
mm/min
|
200
|
|
motor power
|
spindle motor
|
KW
|
11kw
|
|
B spindle workbench motor
|
KW
|
2.2KW
|
|
X spindle motor
|
KW
|
servo 12Nm
|
|
Z spindle motor
|
KW
|
servo 10Nm
|
|
Swing arm motor
|
KW
|
servo 10Nm
|
|
water pump motor
|
KW
|
0.25
|
|
Precision
|
X\Z positionaI accuracy
|
mm
|
0.01/300，0.005/300
|
|
X\Z repeat accuracy
|
mm
|
0.01/1000，0.01/1000
|
|
workbench runout
|
mm
|
0.002
|
|
Guide rail
|
X spindle
|
|
2 linear guide rail
|
|
Z spindle
|
|
2 linear guide rail
|
|
Cylinder size
|
Lifting cylinder
|
|
MGGLB50-800-C73
|
|
Turn the cylinder
|
|
|
|
Lead screw
|
X\Z spindle diameter
|
mm
|
Φ50×2/Φ50×2
|
|
X\Z spindle pitch
|
mm
|
10
|
|
nut
|
|
ball nut
|
|
Oil tank
|
cooling system
|
L
|
80
|
|
hydraulic system
|
L
|
80
|
|
lubrication system
|
L
|
4
|
|
Machine Specifications
|
air pressure
|
Mpa
|
0.6-0.7
|
|
power capacity
|
KVA
|
20
|
|
numerical control system
|
|
Rexroth
|
|
equipment size
|
mm
|
2500×1600×2200
|
|
gross weight of equipment
|
KG
|
3800
|
|
|
|
|
