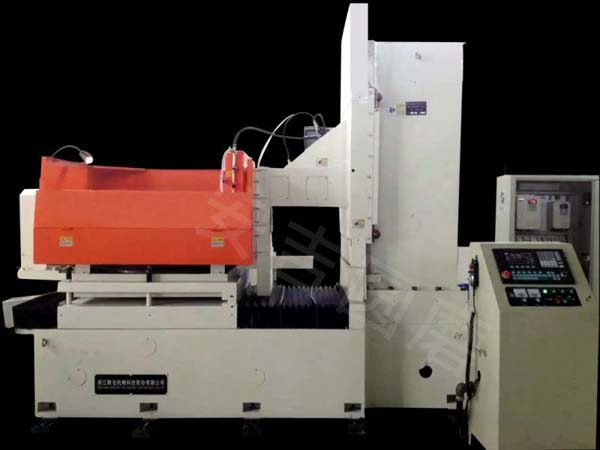

CNC horizontal shaft rotary surface grinder 73220



CNC horizontal shaft rotary surface grinder SSKMG73220



The principle and structure of equipment:



The SSKMG73220 head on the carriage reciprocates the carriage for vertical movement in the form of column guide rail. Electrical equipment imported by rail, Rexroth, new design by working platform, improve equipment stability and accuracy. The bed, the column used in all casting two tempering stress relieving material, high strength, to ensure the stability of the equipment.



Advantage:



Independent research and development of CNC grinding machine control system, parameter setting simple. Set the size, automatic detection, automatic identification, automatic knife grinding, automatic compensation, automatic grinding quantity. Equipped with automatic demagnetizing device with adjustable magnetic field loss protection function, etc.. The casting speed, high rigidity, high precision, convenient operation,



Use:



Suitable for rotary surface grinding, the grinding machine main diameter in the range of 2200 round face, flat pieces. (according to the need can be customized)



Applicable industry:



Saw blade factory, auto parts factory, bearing factory, engine factory, tool factory, friction plate factory, factory, ceramic piston seal factory and general machinery factory products workshop and workshop tools, grinding precision parts machining;



Characteristic：



1, product processing adaptability; 2, the processing precision is high, the thickness of the workpiece gap within 0.003mm after processing, the surface roughness can reach Ra 0.4 M. 3, product deformation, uniform size and good; 4, the labor intensity is low, a control machine, reduce labor costs; 5, high production efficiency, good economic benefits; 6, machine maintenance and simple and convenient modern production management; 7.
